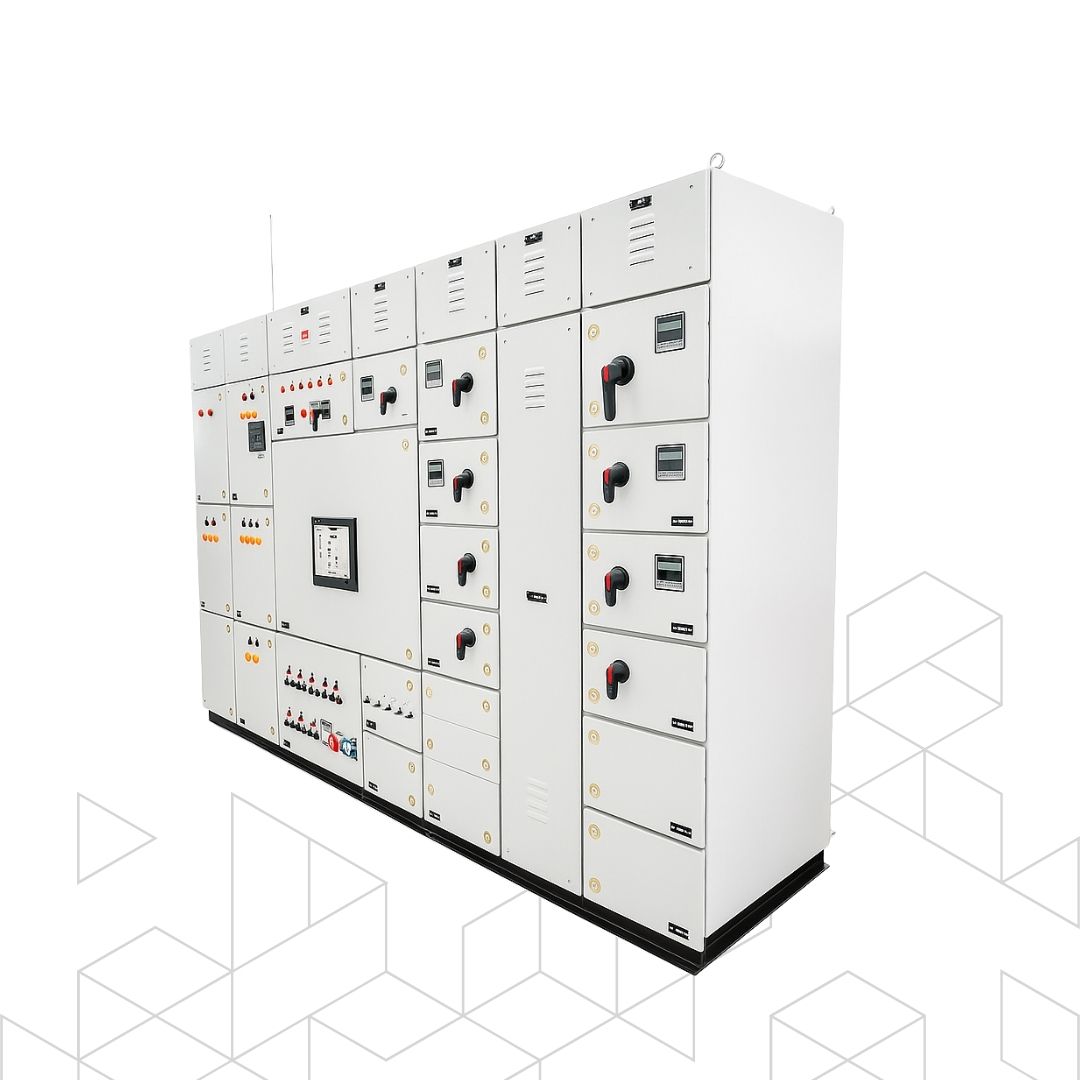

PCC (Power Control Centre) Panel

A Power Control Center (PCC) is a crucial electrical distribution panel in industrial and commercial settings. Its primary function is to distribute electrical power to various loads within a facility while providing control and protection. Below are details about the PCC panel, including its construction, applications, and typical ratings:

Components and Features

Enclosure

The PCC panel is housed in a robust and weather-resistant enclosure. The enclosure can be made of metal (typically sheet steel) and is designed to protect the internal components from environmental factors and unauthorized access.

Busbars

PCC panels have copper or aluminum busbars for efficient power distribution. Busbars are conductive bars that carry electrical current and connect various components within the panel.

Circuit Breakers

These are installed for individual circuits to provide protection against overloads and short circuits. The circuit breakers can be of various types, including air circuit breakers (ACBs) or molded case circuit breakers (MCCBs).

Switchgear

PCC panels incorporate switchgear for controlling and isolating electrical circuits. This may include switches, disconnectors, and other control devices.

Application

Industrial Facilities

PCC panels are commonly used in manufacturing plants, refineries, and other industrial facilities to distribute power to motors, machinery, and other equipment.

Commercial Buildings

In large commercial buildings, PCC panels serve to distribute power to various loads such as lighting, HVAC systems, and other electrical appliances.

Critical Infrastructure

PCC panels are employed in critical infrastructure sectors like hospitals and data centers to ensure a reliable and controlled power supply.

Rating

Voltage Rating

PCC panels are designed for specific voltage levels, such as 415V for industrial applications. The voltage rating depends on the system requirements and local standards.

Current Rating

The current-carrying capacity of the PCC panel is determined by the total load it is expected to handle. This rating is crucial to prevent overheating and ensure the safety of the electrical system.

Short Circuit Withstand Capacity

PCC panels must have adequate short circuit withstand capacity to withstand and interrupt fault currents. This rating is critical for the safety of the system.

IP Rating

The Ingress Protection (IP) rating indicates the level of protection against dust and water. Higher IP ratings are suitable for harsh environmental conditions.

Fault Level

The fault level rating indicates the maximum fault current that the panel can safely handle without damage.

Be a part of Synchro’s journey.
Join us and grow your expertise.

Advantages

Centralized Control

PCC panels provide a centralized control point, making it easier for operators to monitor and manage the electrical distribution system.

Enhanced Safety

Incorporation of protection devices ensures that electrical equipment and circuits are safeguarded against faults, enhancing overall system safety.

Efficient Power Distribution

By providing a structured distribution network, PCC panels help optimize the power supply, reducing wastage and improving overall efficiency.

Easy Maintenance

The centralized nature of PCC panels simplifies maintenance activities, as operators can quickly identify and address issues within the control center.

Centralized Control

PCC panels provide a centralized control point, making it easier for operators to monitor and manage the electrical distribution system.

Enhanced Safety

Incorporation of protection devices ensures that electrical equipment and circuits are safeguarded against faults, enhancing overall system safety.

Efficient Power Distribution

By providing a structured distribution network, PCC panels help optimize the power supply, reducing wastage and improving overall efficiency.

Easy Maintenance

The centralized nature of PCC panels simplifies maintenance activities, as operators can quickly identify and address issues within the control center.

FAQ's

What is a PCC (Power Control Centre) Panel?

A PCC Panel is a main electrical distribution panel used to control and distribute power from a transformer or generator to different electrical loads within an industrial or commercial facility.

What is the purpose of a PCC Panel?

The primary purpose of a PCC Panel is to manage and distribute electrical power safely while providing protection and control for connected electrical systems.

Where are PCC Panels commonly used?

PCC Panels are commonly used in industries, factories, commercial buildings, infrastructure projects, and power plants where reliable power distribution is required.

What components are included in a PCC Panel?

A PCC Panel typically includes circuit breakers, busbars, protection relays, meters, switches, and control devices to regulate and protect the electrical system.

What are the key features of a PCC Panel?

Key features include efficient power distribution, centralized control, high fault protection, durable construction, and reliable electrical performance.

How does a PCC Panel improve electrical safety?

A PCC Panel includes protective devices such as circuit breakers and overload protection systems that help prevent short circuits, electrical faults, and equipment damage.

Can PCC Panels be customized according to project requirements?

Yes, PCC Panels can be designed and customized based on voltage rating, current capacity, number of feeders, and specific application requirements.

What industries use PCC Panels?

PCC Panels are widely used in manufacturing industries, power plants, infrastructure projects, commercial facilities, and large electrical distribution systems.
