Solar ACDB DCDB Box

A Solar ACDB / DCDB Box is a protection and distribution panel used in solar power systems. The DCDB collects DC power from solar panels and sends it safely to the inverter, while the ACDB distributes the AC power from the inverter to the main electrical panel or grid.

An ACDB / DCDB Box is required to protect the solar system from electrical faults such as overloads, short circuits, and voltage surges while ensuring safe power distribution between solar panels, the inverter, and the electrical network.

The DCDB manages the direct current generated by solar panels and sends it to the inverter. The ACDB works on the output side of the inverter and distributes the converted AC power to the building’s electrical system or the utility grid.

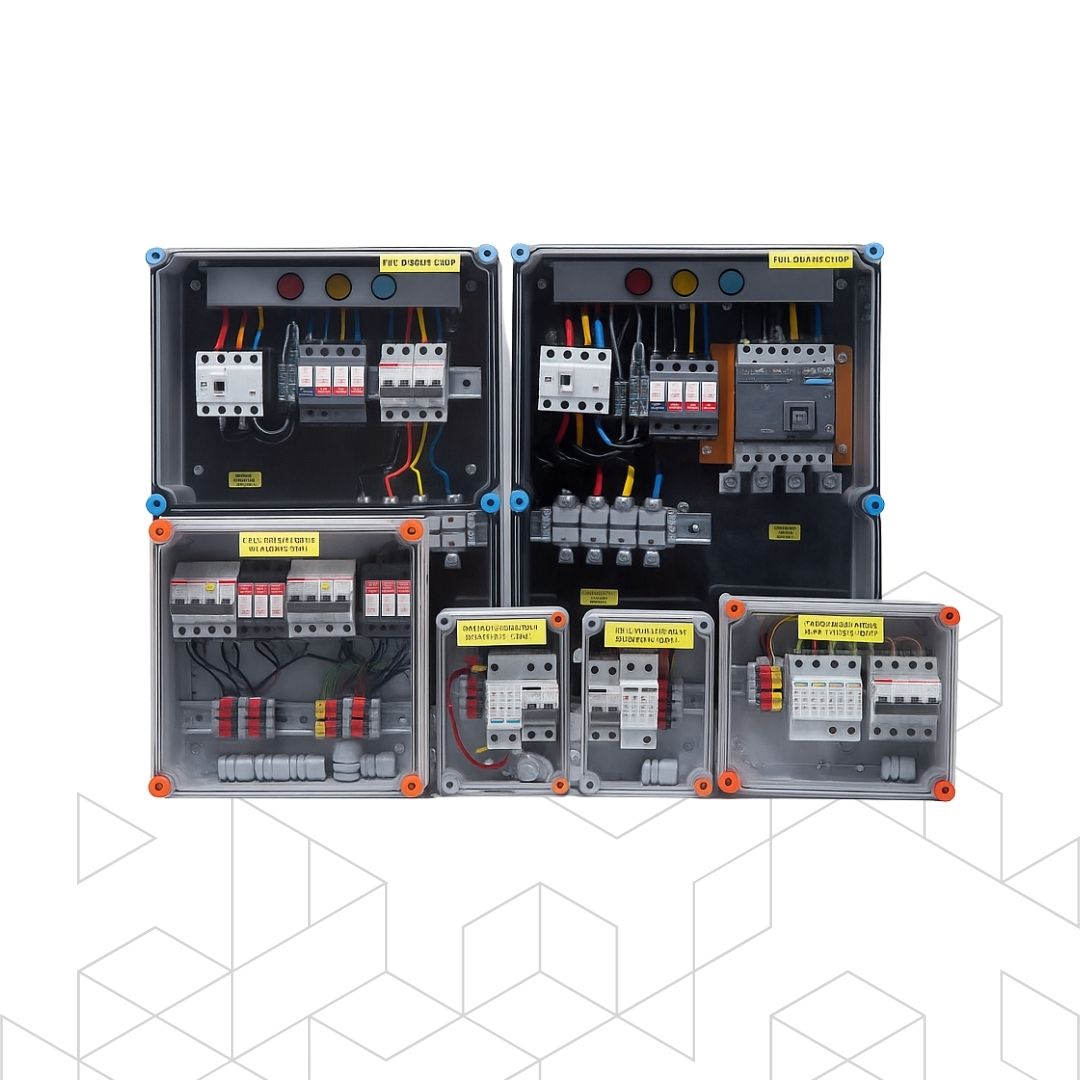

A Solar ACDB / DCDB Box typically includes circuit breakers, isolators, surge protection devices, fuses, and terminals that help control and protect the electrical flow in the solar power system.

These boxes are commonly used in residential rooftop solar systems, commercial solar installations, industrial solar plants, and utility-scale solar power projects.

It improves safety by isolating circuits and protecting the system from faults such as short circuits, overcurrent, and lightning surges, helping prevent damage to solar panels, inverters, and connected equipment.

Yes, Solar ACDB / DCDB Boxes can be customized based on system capacity, number of solar panel strings, voltage rating, and project requirements.

Yes, it is an important part of grid-connected solar installations because it ensures proper power distribution and provides protection for both the solar system and the electrical network.
